Monel valves

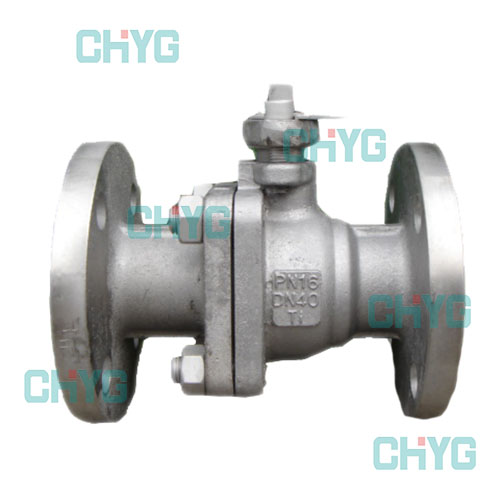

Monel alloy ball valve

  Monel alloy ball valve
share

Monel alloy ball valve product features:


1, small flow resistance, ball valve is the smallest of all valve fluid resistance in the class a, even reducing ball valve, the fluid resistance is small.


2, good sealing performance. Ball valve seat (ring) generally use the elastic materials such as teflon, easy to guarantee the seal, and valve sealing force with medium pressure increases.


3, the valve stem seal and reliable. When the ball valve open/close the valve stem only rotate 90 ° movement, so the valve stem packing seal is not easy to be destroyed, and the valve stem pour sealing sealing force with medium pressure increases.


4, do 90 ° rotation of ball valve opening and closing, so easy to achieve automatic control and remote control, ball valve electric device can be configured, pneumatic equipment, hydraulic equipment.




Monel alloy ball valve technical specification:


Design standards: GB/T12237, API6D, ASME B16.34


Structure length: GB/T12221, API6D, ASME B16.10


Connecting flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS


Test standard: JB/T9092, GB/T13927, API6D, API598



Monel alloy ball valve body material: M - 30 c, Monel 400, Monel 600, Monel K500



Pressure rating: PN1.6-10.0 MpaClass150-600 lb



Nominal diameter: DN15 - DN250 1/2 "- 10"



Driving mode: handle, worm gear and worm, pneumatic, hydraulic, electric




The corresponding monel alloy ball valve type:


Q41F - 16 M, 25 M, Q41F Q41F - - 40 M, Q41F - 64 - M, Q41F - 100 - M, Q41F - 150 lb (M), Q41F - 300 lb (M), Q41F - 300 lb (M)



Applicable medium: the corrosive medium.
